BL1610-12XXM-PG series

open double row pin headers with guides for surface mounting (SMD), pitch 1.00 mm

BL1610-12XXM-PG series, open double row pin headers with guides for surface mounting (SMD), pitch 1.00 mm, Board-to-Board connectors, pin headers and sockets for them > pitch 1.00 mm

Drawing

BL1610	-	1	2	XX	M	-	PG
1		2	3	4	5		6

1) series:
     BL1610: H=1,0 mm
2) Insulator:
     1: one
3) Number of rows:
     2: two
4) number of contacts per row (2x50):
     01 ... 50
5) Type:
     M: SMT
6) guides to PCB
     PG: there are guides to PCB

Open double row pin headers with guides for surface mounting (SMD) of this series are made in the form of a comb 2x50 Drawing. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

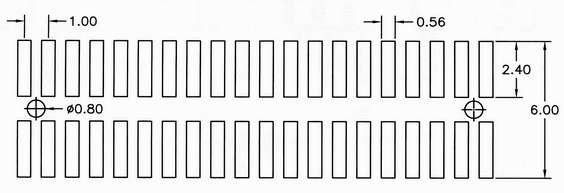

PCB layout

ID	Part.No.	number of contacts
190383	BL1610-1201M-PG	1
190384	BL1610-1202M-PG	2
190385	BL1610-1203M-PG	3
190386	BL1610-1204M-PG	4
190387	BL1610-1205M-PG	5
190388	BL1610-1206M-PG	6
190389	BL1610-1207M-PG	7
190390	BL1610-1208M-PG	8
190391	BL1610-1209M-PG	9
190392	BL1610-1210M-PG	10
190393	BL1610-1211M-PG	11
190394	BL1610-1212M-PG	12
190395	BL1610-1213M-PG	13
190396	BL1610-1214M-PG	14
190397	BL1610-1215M-PG	15
190398	BL1610-1216M-PG	16
190399	BL1610-1217M-PG	17
190400	BL1610-1218M-PG	18
190401	BL1610-1219M-PG	19
190402	BL1610-1220M-PG	20
190403	BL1610-1221M-PG	21
190404	BL1610-1222M-PG	22
190405	BL1610-1223M-PG	23
190406	BL1610-1224M-PG	24
190407	BL1610-1225M-PG	25

ID	Part.No.	number of contacts
190408	BL1610-1226M-PG	26
190409	BL1610-1227M-PG	27
190410	BL1610-1228M-PG	28
190411	BL1610-1229M-PG	29
190412	BL1610-1230M-PG	30
190413	BL1610-1231M-PG	31
190414	BL1610-1232M-PG	32
190415	BL1610-1233M-PG	33
190416	BL1610-1234M-PG	34
190417	BL1610-1235M-PG	35
190418	BL1610-1236M-PG	36
190419	BL1610-1237M-PG	37
190420	BL1610-1238M-PG	38
190421	BL1610-1239M-PG	39
190422	BL1610-1240M-PG	40
190423	BL1610-1241M-PG	41
190424	BL1610-1242M-PG	42
190425	BL1610-1243M-PG	43
190426	BL1610-1244M-PG	44
190427	BL1610-1245M-PG	45
190428	BL1610-1246M-PG	46
190429	BL1610-1247M-PG	47
190430	BL1610-1248M-PG	48
190431	BL1610-1249M-PG	49
190432	BL1610-1250M-PG	50
