| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
2208R-XXG-XXXXXX (PLD2-xxR) series |
plugs pin open angle two-row on the Board for mounting in holes, pitch 2,0x2,0 mm
|
Drawing
|
| 2208 |
R |
- |
02 |
G |
- |
XXXXXX |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) Series:
2208
2) Insulator:
R: angle
3) number of pins (2...80):
02: 2 pin (padded with zeros in front if less than 10 pins, i.e.: 02, ... 08)
04: 4 pins
xx: ...
80: 80 pins
4) Contact coverage:
G: gold plating
CG: selective gold plating
T: tin plating
5) Dimensions A, B, C in tenths of mm (standard 281140):
XXXXXX
|
|
Plugs pin open angle two-row on the Board for mounting in holes of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

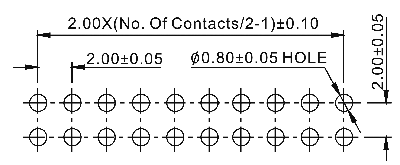

PCB layout
 |
| 80485 |
2208R-02G (PLD2-02R) |
2 |
| 65776 |
2208R-04G (PLD2-04R) |
4 |
| 65777 |
2208R-06G (PLD2-06R) |
6 |
| 65778 |
2208R-08G (PLD2-08R) |
8 |
| 65779 |
2208R-10G (PLD2-10R) |
10 |
| 65780 |
2208R-12G (PLD2-12R) |
12 |
| 65810 |
2208R-14G (PLD2-14R) |
14 |
| 65781 |
2208R-16G (PLD2-16R) |
16 |
| 65782 |
2208R-18G (PLD2-18R) |
18 |
| 65783 |
2208R-20G (PLD2-20R) |
20 |
| 65784 |
2208R-22G (PLD2-22R) |
22 |
| 55973 |
2208R-24G (PLD2-24R) |
24 |
| 65785 |
2208R-26G (PLD2-26R) |
26 |
| 65786 |
2208R-28G (PLD2-28R) |
28 |
| 65787 |
2208R-30G (PLD2-30R) |
30 |
| 65788 |
2208R-32G (PLD2-32R) |
32 |
| 65789 |
2208R-34G (PLD2-34R) |
34 |
| 65790 |
2208R-36G (PLD2-36R) |
36 |
| 65791 |
2208R-38G (PLD2-38R) |
38 |
| 19480 |
2208R-40G (PLD2-40R) |
40 |
|
|
| 65792 |
2208R-42G (PLD2-42R) |
42 |
| 65793 |
2208R-44G (PLD2-44R) |
44 |
| 65794 |
2208R-46G (PLD2-46R) |
46 |
| 65795 |
2208R-48G (PLD2-48R) |
48 |
| 55974 |
2208R-50G (PLD2-50R) |
50 |
| 65796 |
2208R-52G (PLD2-52R) |
52 |
| 65797 |
2208R-54G (PLD2-54R) |
54 |
| 65798 |
2208R-56G (PLD2-56R) |
56 |
| 65799 |
2208R-58G (PLD2-58R) |
58 |
| 65800 |
2208R-60G (PLD2-60R) |
60 |
| 65801 |
2208R-62G (PLD2-62R) |
62 |
| 65802 |
2208R-64G (PLD2-64R) |
64 |
| 65803 |
2208R-66G (PLD2-66R) |
66 |
| 65804 |
2208R-68G (PLD2-68R) |
68 |
| 65805 |
2208R-70G (PLD2-70R) |
70 |
| 65806 |
2208R-72G (PLD2-72R) |
72 |
| 65807 |
2208R-74G (PLD2-74R) |
74 |
| 65808 |
2208R-76G (PLD2-76R) |
76 |
| 65809 |
2208R-78G (PLD2-78R) |
78 |
| 24106 |
2208R-80G (PLD2-80R) |
80 |
|
PCB layout
|
|
|
