2209S-XXG (PBS2-XX, DS1026-01-1xXXS8BV) series

socket single row straight pin header on the Board for mounting holes, pitch 2,0 mm

2209S-XXG (PBS2-XX, DS1026-01-1xXXS8BV) series, socket single row straight pin header on the Board for mounting holes, pitch 2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0 mm

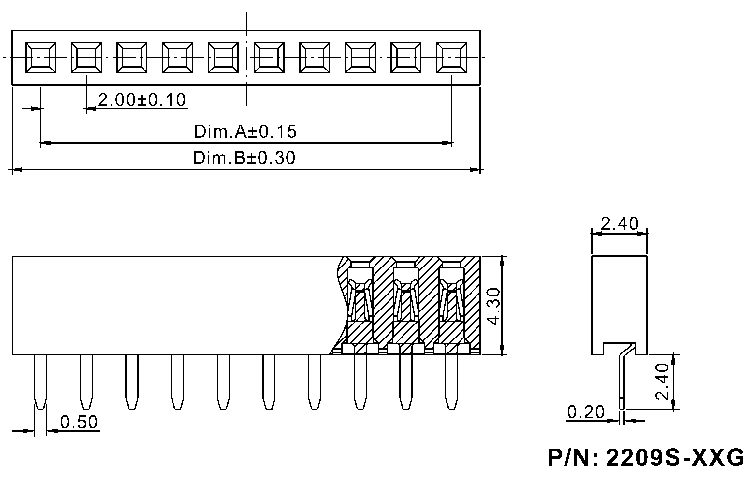

Drawing

2209	S	-	02	G
1	2		3	4

1) Series:
     2209
2) Type:
     S: straight
3) number of pins (2...40):
     02: 2 pin (padded with zeros in front if less than 10 pins, i.e.: 02, 03...09)
     03: 3 pins
     xx: ...
     40: 40 pins
4) Contact coverage:
     G: gold plating

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
35707	2209S-02G (PBS2-2, DS1026-01-1x02S8BV)	2
19167	2209S-03G (PBS2-3, DS1026-01-1x03S8BV)	3
35420	2209S-04G (PBS2-4, DS1026-01-1x04S8BV)	4
70892	2209S-05G (PBS2-5, DS1026-01-1x05S8BV)	5
70893	2209S-06G (PBS2-6, DS1026-01-1x06S8BV)	6
70894	2209S-07G (PBS2-7, DS1026-01-1x07S8BV)	7
70895	2209S-08G (PBS2-8, DS1026-01-1x08S8BV)	8
70896	2209S-09G (PBS2-9, DS1026-01-1x09S8BV)	9
70897	2209S-10G (PBS2-10, DS1026-01-1x10S8BV)	10
70898	2209S-11G (PBS2-11, DS1026-01-1x11S8BV)	11
35708	2209S-12G (PBS2-12, DS1026-01-1x12S8BV)	12
70899	2209S-13G (PBS2-13, DS1026-01-1x13S8BV)	13
70900	2209S-14G (PBS2-14, DS1026-01-1x14S8BV)	14
70901	2209S-15G (PBS2-15, DS1026-01-1x15S8BV)	15
70902	2209S-16G (PBS2-16, DS1026-01-1x16S8BV)	16
70903	2209S-17G (PBS2-17, DS1026-01-1x17S8BV)	17
70904	2209S-18G (PBS2-18, DS1026-01-1x18S8BV)	18
70905	2209S-19G (PBS2-19, DS1026-01-1x19S8BV)	19
51822	2209S-20G (PBS2-20, DS1026-01-1x20S8BV)	20
56880	2209S-21G (PBS2-21, DS1026-01-1x21S8BV)	21
70906	2209S-22G (PBS2-22, DS1026-01-1x22S8BV)	22
70907	2209S-23G (PBS2-23, DS1026-01-1x23S8BV)	23
70908	2209S-24G (PBS2-24, DS1026-01-1x24S8BV)	24
70909	2209S-25G (PBS2-25, DS1026-01-1x25S8BV)	25
19159	2209S-26G (PBS2-26, DS1026-01-1x26S8BV)	26
70910	2209S-27G (PBS2-27, DS1026-01-1x27S8BV)	27
70911	2209S-28G (PBS2-28, DS1026-01-1x28S8BV)	28
70912	2209S-29G (PBS2-29, DS1026-01-1x29S8BV)	29
70913	2209S-30G (PBS2-30, DS1026-01-1x30S8BV)	30
70914	2209S-31G (PBS2-31, DS1026-01-1x31S8BV)	31
70915	2209S-32G (PBS2-32, DS1026-01-1x32S8BV)	32
70916	2209S-33G (PBS2-33, DS1026-01-1x33S8BV)	33
70917	2209S-34G (PBS2-34, DS1026-01-1x34S8BV)	34
70918	2209S-35G (PBS2-35, DS1026-01-1x35S8BV)	35
70919	2209S-36G (PBS2-36, DS1026-01-1x36S8BV)	36
70920	2209S-37G (PBS2-37, DS1026-01-1x37S8BV)	37
70921	2209S-38G (PBS2-38, DS1026-01-1x38S8BV)	38
70922	2209S-39G (PBS2-39, DS1026-01-1x39S8BV)	39
70923	2209S-40G (PBS2-40, DS1026-01-1x40S8BV)	40
