Battery Holders /

Battery Holders C (BH2xx)

Ordering Information:
S BH - 3 4 1 - 1 A
1 2   3 4 5   6 7

1 - S - Safety;
2 - BH: Battery Holder;
3 - Type of Battery:
     1 - D (Cylindrical d=34,2 mm, h=61,5 mm);
     2 - C (Cylindrical d=26,2 mm, h=50,0 mm);
     3 - AA (Cylindrical d=14,5 mm, h=50,5 mm);
     4 - AAA (Cylindrical d=10,5 mm, h=44,5 mm);
     5 - N (Cylindrical d=11,95 mm, h=29,35 mm);
     9V - (Rectangular Krona 26,5 x 17,5 x 48,5 mm)
4 - Number of batteries
5 - Series No.
6 - Number
7 - Termination:
     A - with lead wires 150mm;
     B - with 4prong or 6prong snap terminal;
     D - with tag (solder, lug) terminal;
     H - with housig;
     P - with pin (pc mounted);
     S - with switch;
     T - with terminal


(C x 1) BH211A
BH211D
Battery Holders Battery Holders
(C x 1) BH211-1A
BH211-1D
Battery Holders Battery Holders
(C x 2) BH221A
BH221B
BH221D
Battery Holders Battery Holders
(C x 3) BH231A
BH231D
BH231P
Battery Holders Battery Holders
(C x 3) BH232A
BH232B
BH232D
Battery Holders Battery Holders
(C x 4) BH241A
BH241D
Battery Holders Battery Holders
(C x 4) BH242A
BH242B
BH242D
Battery Holders Battery Holders
(C x 4) BH242-1A
BH242-1B
BH242-1D
Battery Holders Battery Holders

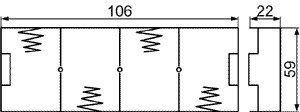

(C x 4) BH243A
BH243B
BH243D
Battery Holders Battery Holders
(C x 6) BH261A
BH261B
BH261D
Battery Holders Battery Holders
(C x 6) BH262A
BH262B
BH262D
Battery Holders Battery Holders
(C x 8) BH281A
BH281B
BH281D
Battery Holders Battery Holders
(C x 2) BHC-221A
BHC-221B
BHC-221D
Battery Holders Battery Holders
(C x2) SBH-221A
SBH-221AS
Battery Holders Battery Holders



Dimensions

Cylindrical

Type Height
mm
Diameter
mm
AAAA 42,5 8,3
AAA 44,5 10,5
AA 50,5 14,5
C 50 26,2
D 61,5 34,2
N 29,35 11,95

Rectangular

Type Height
mm
Length x Width
mm
J 48,5 33,5 х 9,2
9B 48,5 26,5 х 17,5
