Potentiometers / Rotary Potentiometers / 12 mm size /

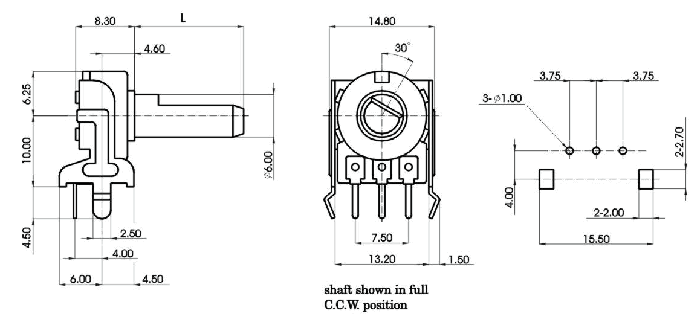

R1216N-_A4-
12 mm size Rotary Potentiometers
Characteristics
| Mechanical: |
|
| Total rotational angle |
300°±10° |
| Rotational torque |
20-150 gf.cm |
| Rotation stopper strength |
4 kgf.cm |
| Push pull strength |
4 kgf max. |
| Click position |
Center click |
| |
|
| Electrical: |
|
| Total resistance |
5 KΩ - 2 MΩ |
| Total resistance tolerance |
±20%
(more than 1 MΩ ±30%) |
| Rated power |
curve B: 0.04 W
other than B: 0.02 W |
| Max. operating voltage |
curve B: 100 V AC
other than B: 50 V AC |
| Resistance taper |
A, B, C |
| Residual resistance |
R >= 250 KΩ 0,1 % max. of total resistance
250 KΩ > R > 10 KΩ = 20 Ω max.
10 KΩ >= R = 10 Ω max. |
| Insulation resistance |
more than 50 MΩ
at DC 250 V |
| Gang error |
-40 - 0 dB <= 3 dB |
| |
|
| Durability: |
|
| Rotational life |
15000 cycles |
|
 |
|
Type of shaft
Insulated shaft
Metal shaft
|
|
